TRENDnet TPE-LG50 (v1.0R) 5-Port Gigabit Long Range PoE+ Switch

Model

Brand

TRENDnet

Model

TPE-LG50 (v1.0R)

Format & Standards

Standards

IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3p
IEEE 802.3af
IEEE 802.3at

Ports & Interface

Primary Ports

4 x RJ45

Primary Port Speed

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit Ethernet: 2000 Mbps (full duplex)

Data Transmission

MAC Address Table

2K

VLAN Support

Yes

Jumbo Frames

9KB

Details

Buffer Memory

128KB

Protocols

TCP/IP

PoE

Yes

Power

Power
Input: 100-240V AC, 50/60 Hz, 1.2A
Output: 54V DC, 0.7A external power adapter
Max. consumption: 36.3W

PoE:
PoE budget: 32W
PoE Mode A: Pins 1,2 for power and pins 3,6 for power

Features

Features

Easy installation

4 x Gigabit PoE+ ports and 1 x Gigabit ports

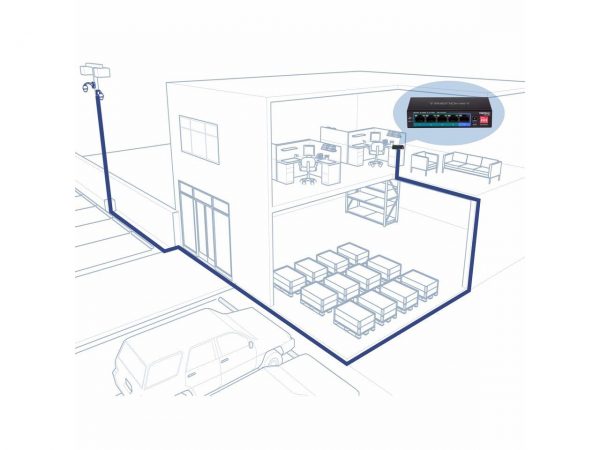

Enable the DIP switch to extend PoE+ signal up to 200m (656 ft.) at 10 Mbps

DIP switch supports VLAN port isolation and QoS

10 Gbps switching capacity

32W PoE budget

Wall mountable design

Sturdy metal switch

Use with TRENDnet’s PoE splitter to network and power non-PoE devices

Dimensions & Weight

Dimensions

1.00″ x 4.76″ x 2.95″

Weight

0.54 lb.

Environmental

Temperature

Operating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)

Humidity

Operating Humidity: Max. 90% non-condensing

Packaging

Package Contents

TPE-LG50
Quick Installation Guide

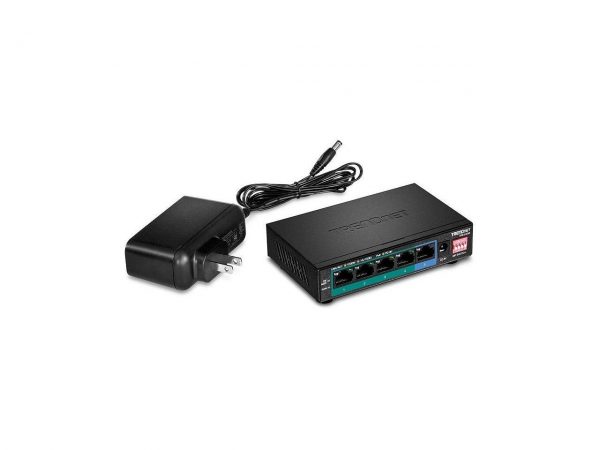

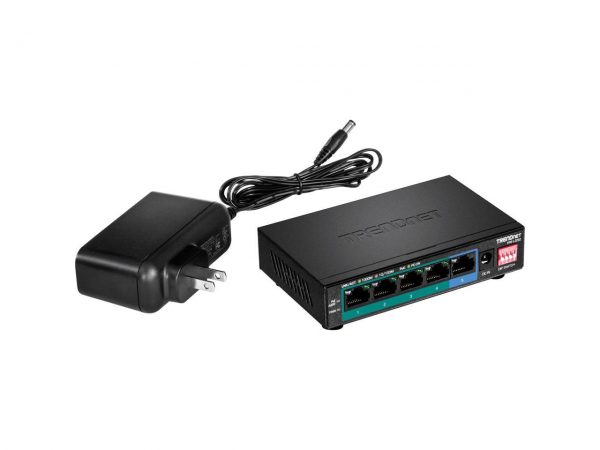

Power adapter (54V DC, 0.7A)

Additional Information

Date First Available

July 02, 2020
